Ceramic Foundry Filter — Controlled Porosity
Foundries filtering molten iron and non-ferrous metals to cut casting defects.
A controlled-porosity ceramic filter that removes inclusions from molten metal.
Key figures
Porosity
10ppi
nominal grade
Max service temperature
1500°C
peak, short duration
Filtration efficiency
>85%
inclusions above 40 µm
Gallery

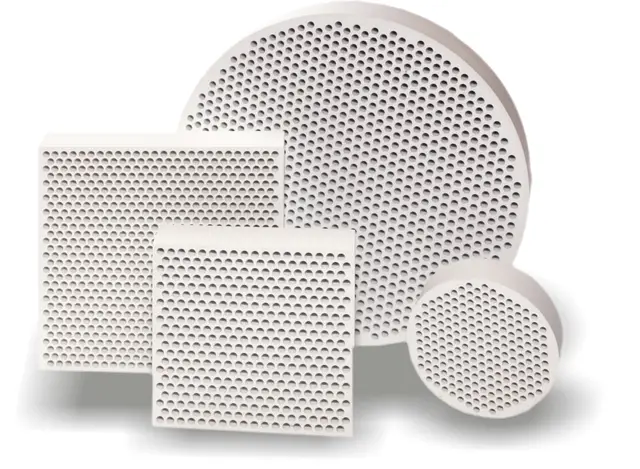

Open-cell structure

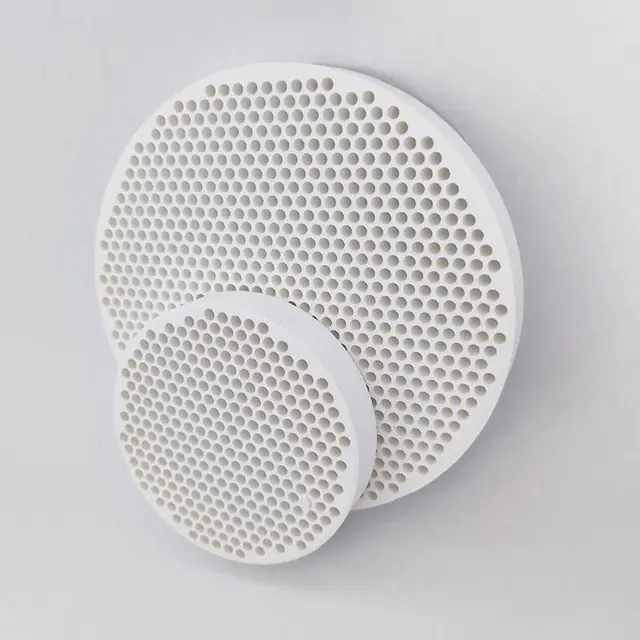

The photograph shows the porosity. The optional 3D cut plane is for visitors who want to sweep through the disc.
Filter porosity — cut plane through the disc
This device keeps the annotated still (data-saver or low memory).
Material properties
- Material — Alumina-silicate ceramic
- Finish — As-fired
| Property | Value | Unit | Condition |
|---|---|---|---|
| Porosity | 10 | ppi | nominal grade |
| Max service temperature | 1500 | °C | peak, short duration |
| Filtration efficiency | >85 | % | inclusions above 40 µm |
What it will not do
- Rated to 1,500 °C peak, short duration. For sustained higher temperatures, ask us about a bonded-grade filter.
- Single-use: a filter is consumed in the pour and is not reclaimable.
See also what we will not do.
Downloads
Datasheets and material declarations are ungated when published. Files for this product are not online yet — ask in the enquiry and we will send them with the reply.
